| Standards | Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
|---|---|
| Débits WiFi | AC1900 5 GHz: 1300 Mbps (802.11ac) 2.4 GHz: 600 Mbps (802.11n) |
| Couverture WiFi | 3 Bedroom Houses
4× Fixed High-Performance Antennas Beamforming |
| Capacité WiFi | Medium
Dual-Band 3×3 MU-MIMO Airtime Fairness |
| Modes de Fonctionnement | Router Mode Access Point Mode |
| MATERIEL | |
|---|---|
| Processeur | 1.2 GHz CPU |

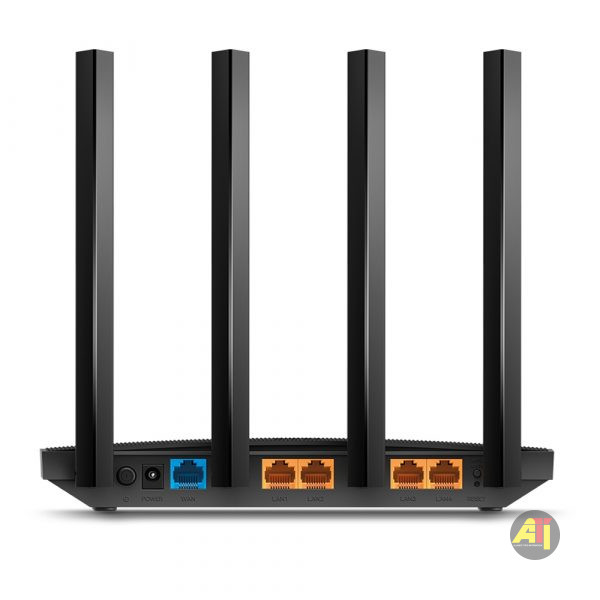

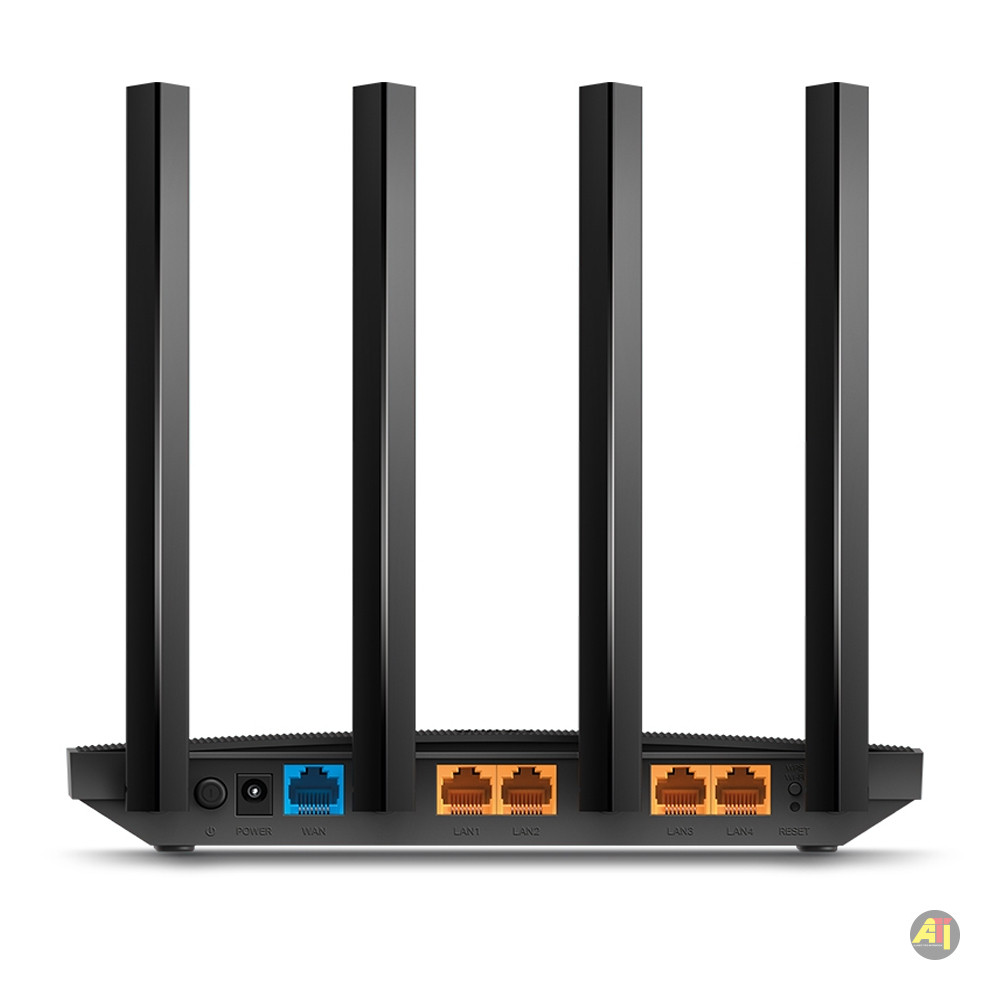

| Ports Ethernet | 1× Gigabit WAN Port 4× Gigabit LAN Ports |
| Boutons | WPS/Wi-Fi Button Power On/Off Button Reset Button |
| Puissance | US Version 12 V ⎓ 1.5 AEU Version 12 V ⎓ 1 A |
| Sécurité | |
|---|---|
| WiFi Encryption | WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x) |
| Sécurité Réseau | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
| Réseau Invité | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
| LOGICIEL | |
|---|---|
| Protocoles | IPv4 IPv6 |
| OneMesh™ | OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. |
| Contrôle Parental | URL Filtering Time Controls |
| Types WAN | Dynamic IP Static IP PPPoE PPTP L2TP |
| Qualité de Service | QoS by Device |
| Service Cloud | OTA Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding | Port Forwarding Port Triggering DMZ UPnP |
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | TP-Link NO-IP DynDNS |
| Management | Tether App Webpage Check Web Emulator> |
| PHYSICAL | |
|---|---|
| Dimensions (W×D×H) | 8.5 × 4.6 × 1.26 in (215 × 117 × 32 mm) |
| Package Contents | Wi-Fi Router Archer C80 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
| AUTRES | |
|---|---|
| Systèmes Requis | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC, CE, RoHS |
| Environnement | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| TEST DATA | |
|---|---|
| Puissance Transmission WiFi | CE: <20dBm(2.4GHz) <23dBm(5.15GHz~5.25GHz) FCC: <30dBm(2.4GHz & 5GHz) |
| Sensibilité Réception WiFi | 5GHz: 11a 6Mbps:-98dBm, 11a 54Mbps:-78dBm 11ac VHT20_MCS0:-98dBm, 11ac VHT20_MCS8:-72dBm 11ac VHT40_MCS0:-92dBm, 11ac VHT40_MCS9:-68dBm 11ac VHT80_MCS0:-89dBm, 11ac VHT80_MCS9:-64dBm2.4GHz: 11g 6Mbps:-97dBm, 11a 54Mbps:-77dBm 11n VHT20_MCS0:-97dBm, 11n VHT20_MCS8:-72dBm 11n VHT40_MCS0:-92dBm, 11n VHT40_MCS9:-67dBm |
